Series 01
Sample Crushers, Pulverizers & Lab Mills
Models: XPC jaw crushers · GJ sealed pulverizers · XMQ cone ball mills
From core and chip samples to analytical pulp. Laboratory jaw crushers reduce coarse rock, sealed pulverizers grind it to 75 µm assay pulp without dust loss, and cone ball mills run your batch grindability and liberation tests.
- Dust-Free Sealed Grinding
- 75 µm Assay Pulp
- Batch Grindability Tests
- Bench or Floor Stands
Sample Preparation Specifications
| Model | Application | Max Feed (mm) | Capacity | Motor (kW) |
|---|---|---|---|---|
| XPC-100×150 Jaw Crusher | Sample crushing | 60 | 150–300 kg/h | 1.5 |
| GJ-1 Sealed Pulverizer | Assay pulverizing | 20 | 100 g/batch | 1.1 |
| GJ-2 Double Pulverizer | Two samples at once | 20 | 2×100 g/batch | 1.1 |

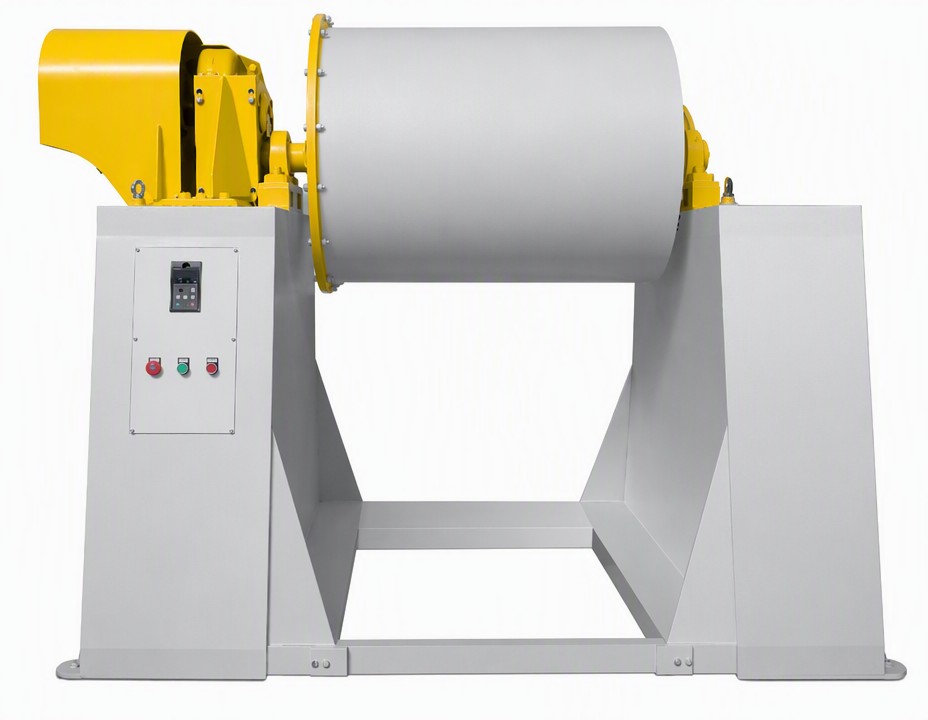

| XMQ-240×90 Cone Ball Mill | Lab grinding test | 5 | 0.2–0.5 kg/batch | 0.75 |
| XMQ-350×160 Cone Ball Mill | Lab grinding test | 5 | 1–3 kg/batch | 1.1 |
Standard reference values — final confirmation at order. Grinding media and sample splitter options available.
