Rotary drums that break clay, wash and screen run-of-mine gravel in one pass. The front end of every alluvial gold plant — and of sand washing operations on shore or on board a dredger vessel.
A TGM trommel does the work of three machines. High-pressure water jets inside a rotating drum break down clay and cemented gravel while the screening section classifies the pulp: oversize rock is rejected at the tail, and washed fines — sized to your downstream plant — leave through the drum shell. On an alluvial gold site it feeds the concentrator and sluice directly; in sand and aggregate operations it produces clean construction sand and gravel.
| Model | Drum (mm) | Capacity (t/h) | Screen Mesh (mm) | Motor (kW) |
|---|---|---|---|---|
| TGM-800×3000 | 800×3000 | 15–40 | 6–12 | 5.5 |
| TGM-1000×3600 | 1000×3600 | 30–70 | 6–12 | 11 |
| TGM-1200×4000 | 1200×4000 | 50–100 | 6–15 | 15 |
| TGM-1500×5000 | 1500×5000 | 80–150 | 6–15 | 18.5 |
Standard specifications — final confirmation at order. Double-deck conversion, water pump packages and sluice boxes available to complete the washing line.
Every TGM is configured around the material you actually mine.
High-pressure pump, ring manifold and jet nozzles sized to your clay content — hard clay gets more washing energy, clean gravel gets less water.

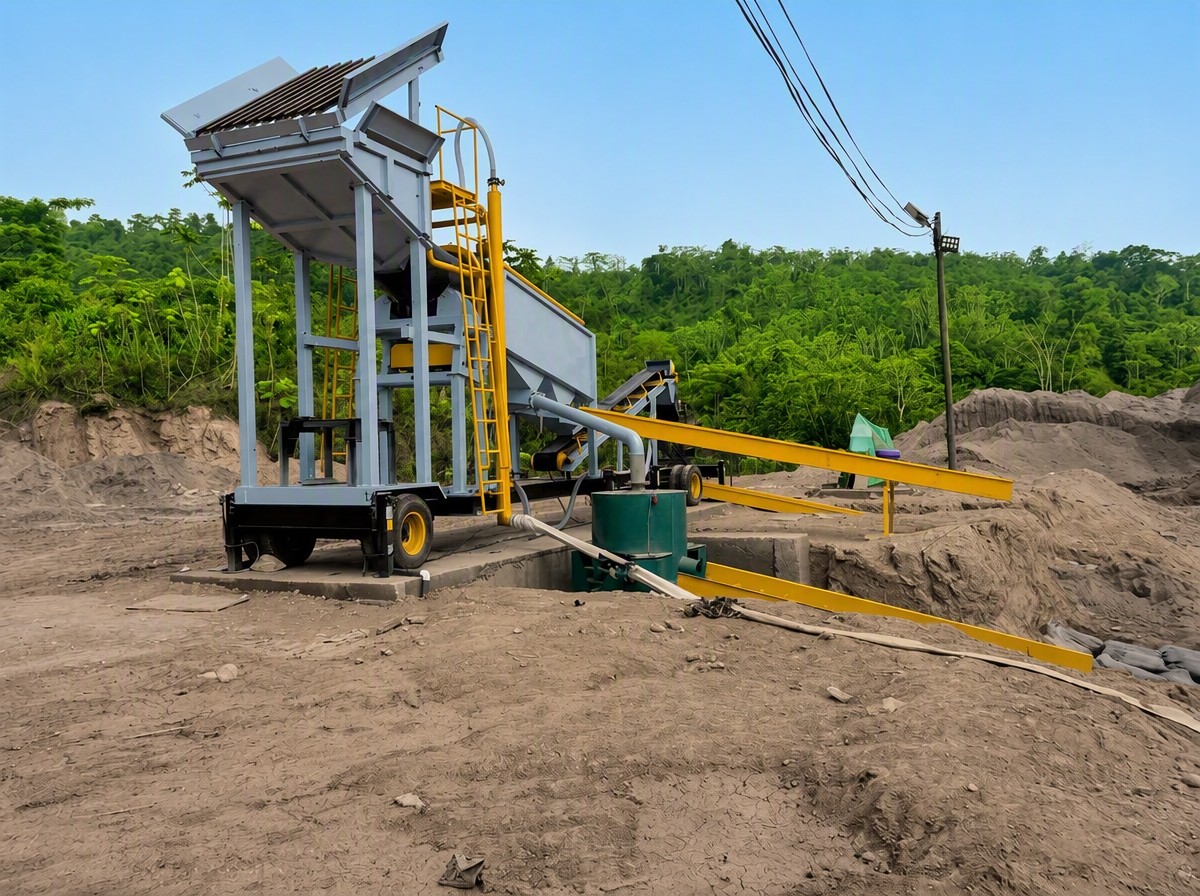

Wheeled or skid-mounted units relocate between pits in days. Feed hopper and grizzly, product belts and tailings chute come as one assembly.
Compact TGM units mount directly on sand dredging and washing vessels — pumped riverbed material washes and screens before it ever touches shore.
Water jets break the clay coatings that carry fine gold away — clean liberation before concentration lifts recovery across the whole line.
Washing, sizing and oversize rejection in a single rotating drum means fewer belts, fewer motors, fewer operators.
15–150 t/h from a 5.5–18.5 kW drive. Recirculating systems cut fresh-water demand at dry-season operations.
Bolted screen panels and replaceable drum liners — service in the field, not the workshop. Spares stocked.
Clay content, top size and tonnage decide the drum. Send us your material report or a sample — we will size the washing line and price it factory-direct.
